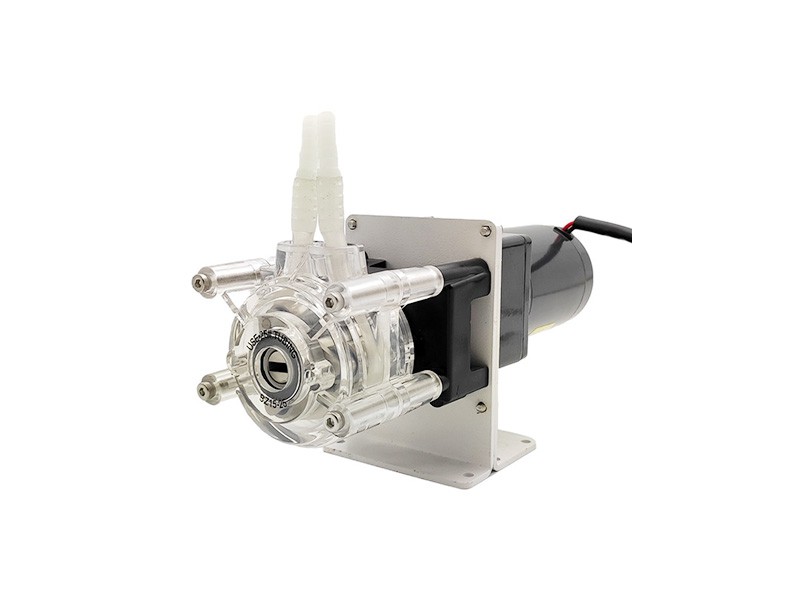

BZ-OEM-dc motor
Product model：BZ-OEM-dc motor
Reference flow： 0.007-2280ml/min
brief introduction:
Function and characteristics
Model：OEM-ZL6020
Suitable for pump head：BZ15/BZ25
Motor type: DC deceleration motor
Supply voltage: 24V
Motor phase number: 2
Motor Power: <20W
Speed Range (rpm) : 1-600 rpm
Operating Temperature: 0-40
Working Environment Humidity: < 80%
Full weight: 3kg
Technical specifications
| Model | BZ25 | BZ25 | BZ15 | BZ15 | BZ15 | BZ15 |
| Suitable for hoses | 35# | 24# | 18# | 25# | 16# | 14# |
| Suitable for hose outside diameter | 12.8mm | 11.2mm | 11.2mm | 8mm | 6.4mm | 4.8mm |
| Suitable for inside diameter of hose | 7.9mm | 6.4mm | 7.9mm | 4.8mm | 3.2mm | 1.6mm |
Other parameters
| Model | Number of rollers | Roller material | Shell material | Speed Range(rpm) | Maximum reference flow(ml/min) | Weight(kg) |
| BZ15-14 | 3 | Stainless steel | PC | ≤600 | 150 | 0.31 |
| BZ15 -16 | 460 | |||||
| BZ15-25 | 960 | |||||
| BZ15 -18 | 2280 | |||||
| BZ25 -24 | 1600 | |||||
| BZ25-35 | 2280 |
