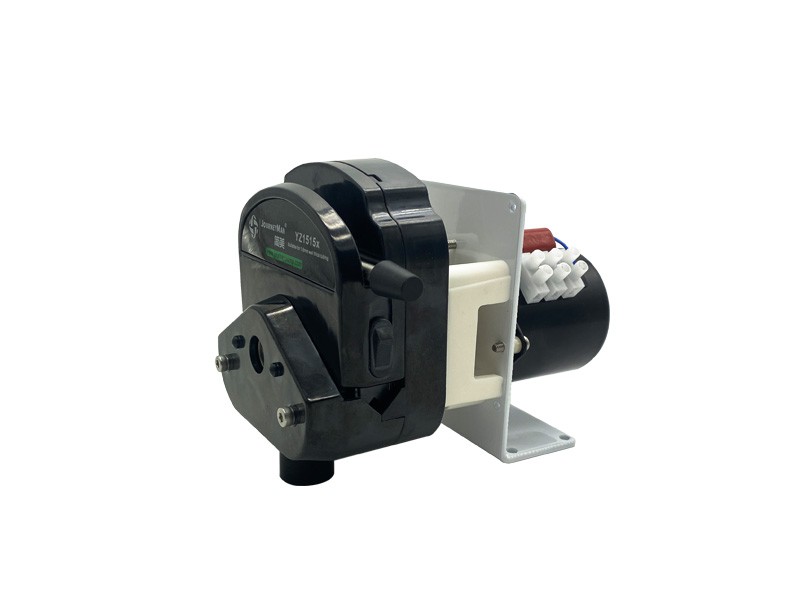

YZ15-OEM-AC synchronous motor
Product model：YZ15-OEM-AC synchronous motor
Reference flow： 0.007-2280mL/min
Product characteristics
Quick replacement hose, with adaptive pipe clamping device.
Suitable for 9 different sizes of hoses to meet different flow requirements.
The pump head housing is made of PSF polysulfone and pps poly-LRB-p-phenylene sulfide) , with high rigidity and precision.
Pump Head roller assembly are made of 304 stainless steel, long life, corrosion resistance.
Industry applications
Industrial transmission, filling
Environmental protection equipment COD supporting
Function and characteristics
1. Pump head shell material-PSF or PSU polysulfone (white) PSF material pump head, white, beautiful appearance, high temperature resistance, can be used between -100 ° C to 150 ° C for a long time, and high temperature aging performance is excellent. In terms of corrosion resistance, it can withstand most of the inorganic acid, alkali and salt corrosion, but can not withstand the corrosion of organic solvents. If you want to transport organic solvents, select the PPS poly-LRB-p-phenylene sulfide) pump head.
2. Pump head roller material-304 stainless steel corrosion resistance, not easy to rust, high health grade, low repair rate, for you to save maintenance costs.
3. Nine different sizes of hoses can be used to ensure the same transmission accuracy of 5‰ ~ 1% in different flow ranges.
Technical parameters
| Pump head type |
Hose |
Inner diameter × wall thickness (mm) |
ML/R |
(speed 0.1-600 rpm) flow rate range mL/min
|
Tube pressure MPA | Material & weight KG | ||
| Discontinuity | Continuous |
PSF |
PPS |
|||||
|
YZ1515x |
13# |
0.8×1.6 |
0.07 |
0.007-42 |
0.27 |
0.17 |
0.40(three rollers)0.44(six rollers)
|
0.46(three rollers)0.50(six rollers)
|
|
14# |
1.6×1.6 |
0.27 |
0.027-162 |
|||||
|
19# |
2.4×1.6 |
0.55 |
0.055-330 |
|||||
|
16# |
3.1×1.6 |
0.82 |
0.082-492 |
|||||
|
25# |
4.8×1.6 |
1.7 |
0.17-1020 |
0.24 |
0.14 |
|||
|
17# |
6.4×1.6 |
2.9 |
0.29-1740 |
0.14 |
0.10 |
|||
|
18# |
7.9×1.6 |
3.8 |
0.38-2280 |
0.10 |
0.07 |
|||

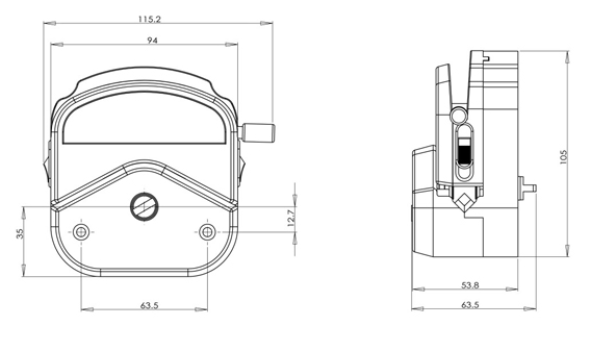

Product appearance size diagram (line diagram)
