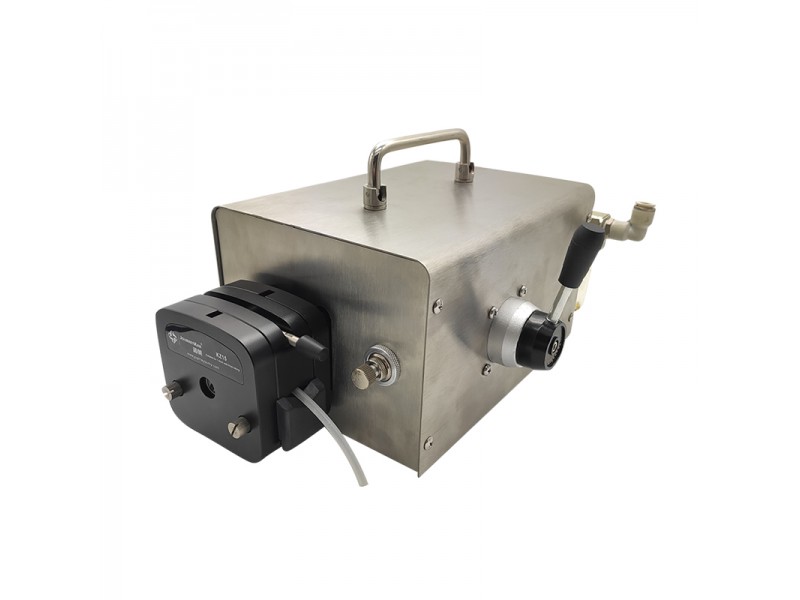

Pneumatic peristaltic pump
Product model： QT600
Reference flow： 0.07-2280ml/min
Product description
• High-quality pneumatic motor drive, running quiet and stable, safe and reliable
• Throttle stepless speed regulation, wide flow range• Can install a variety of pump head, pump pipe to adapt to a variety of specifications• All-in-one desktop structure for easy installation and operation
• Suitable for general accuracy requirements of liquid transmission
Technical parameters
• Speed Range: 140-600 rpm
• Speed Regulation: stepless speed regulation of throttle valve• Control function: Start and stop function, reverse function• Gas Pressure: 0.1 ~ 0.7 mpa
• Air Inlet: 8 × 10 mm Pu
• Air consumption: ≤0.4 m3/min
• Working environment: ambient temperature 0-40 ° C, relative humidity < 80%• Case material: SS304 stainless steel
• Box Size: (length x width x height)257 × 185 × 150mm
• Weight: 5 kg
Flow parameters
| Drive type | Pump Head | Pump head material | Suitable for hoses | Reference flow range (mL/min) | Number of channels |
|
QT600 |
YZ1515x | PPS/PSU | 13# 14# 19# 16# 25# 17# 18# | 0.07-2280 | 1 |
| YZ2515x | PPS/PSU | 15# 24# | 0.17-1740 | 1 | |
| YZ15pro | PPS | 13# 14# 19# 16# 25# 17# 18# | 0.07-2280 | 1 | |
| YZ25pro | PPS | 15# 24# 35# 36# | 0.17-3000 | 1 | |
| YZ25plus | PPS |
15# 24# 35# 36# |
0.17-6000 | 1 | |
| YZ35mini | PPS | 73# 82# | 1.0-8500 | 1 | |
| KZ15 | AL | 13# 14# 19# 16# 25# 17# 18# | 0.07-2280 | 1 | |
| KZ25-3L | AL | 15# 24# 35# 36# | 0.17-3000 | 1 | |
| KZ25-6L | AL | 15# 24# 35# 36# | 0.17-6000 | 1 | |
| KZ35-8L | AL | 73# 82# | 1.0-8500 | 1 |
