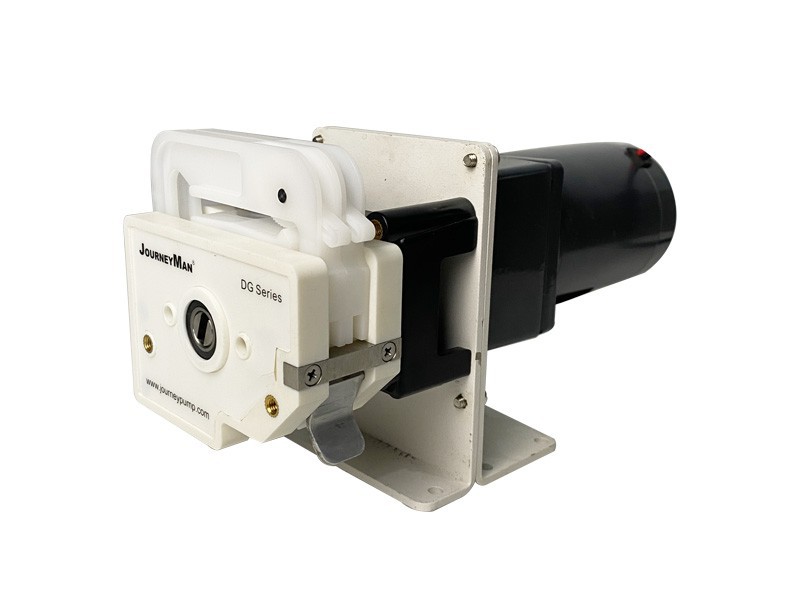

Product model：DG-OEM-ZL8060
Reference flow：
Main features
DG series pump head is designed for small flow, multi-channel fluid delivery, easy to replace and fixed pipe
The pressure tube clearance can be adjusted slightly. The roller is made of acetyl copolymer and the pump shell is made of POM.
Function and characteristics
Model：DG-OEM-ZL8060
Applicable Pump Head: DG Series
Motor type: DC deceleration motor
Power supply voltage：24V
Motor phase number：2
Motor Power：<20W
Speed Range(rpm):1-600RPM
Working environment temperature：0-40
Humidity of working environment：<80%
Full weight：3kg
Flow curve
External dimensions
Selection Guide
|
Models |
Flow Range |
Suitable for hoses |
Clamp pipe way |
Pump shell material |
Roller material |
Roll on the number | Clearance Adjustment |
Weight (kg） |
|
DG1 |
0.0021-21.2ml/min(single tube) |
1*1， 2*1，3*1， 0.5×0.8， 2.4×0.8 |
Adaptive | PPS/PVDF | 304 stainless steel |
6/10 |
Fixed |
0.2 |
|
DG2 |
0.0021-21.2ml/min(single tube) |
1*1， 2*1，3*1， 0.5×0.8， 2.4×0.8 |
Adaptive |
PPS/PVDF |
304 stainless steel |
6/10 | Fixed |
0.3 |
|
DG4 |
0.0021-21.2ml/min(single tube) |
1*1， 2*1，3*1， 0.5×0.8 ，2.4×0.8 |
Adaptive |
PPS/PVDF |
304 stainless steel |
6/10 |
Fixed | 0.5 |
