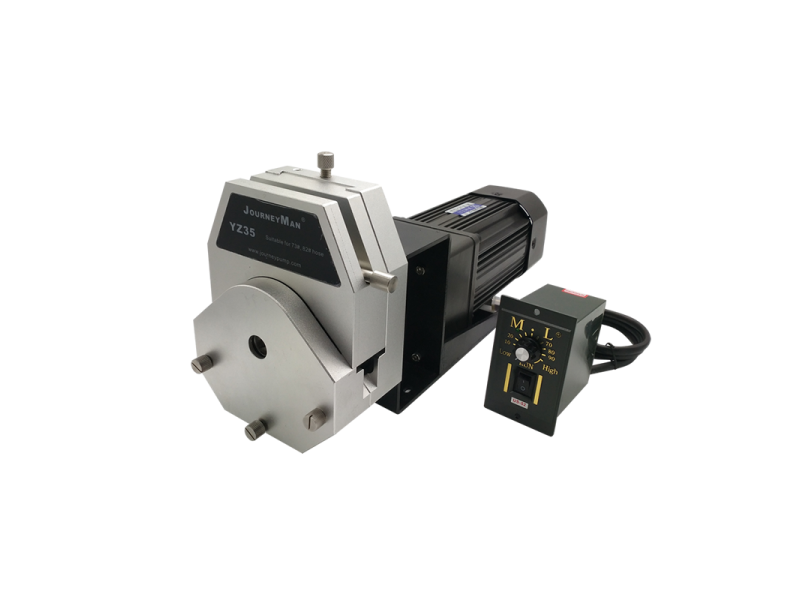

AC Motor_Journeyman Peristaltic Pump

AC Motor

Product model：YZ35-OEM-JT104370

Reference flow： 1-10000ml/min

brief introduction:

Product model: oem-jt104370

Applicable pump head: YZ35 (AL)

Motor type: ac motor

Power supply voltage: 220v/110

Motor phase number: 2

Motor power: 370W

Speed range (RPM): 1-450rpm

Maximum flow: 10000ml/min/ per channel

Working environment temperature: 0-40

Working environment humidity: <80%

Weight: 12kg(excluding pump head)

Pump head type	hose	internal diameter × wall thickness(mm)	ml/r	（speed0.1-600rpm） Flow range mL/min	Hose pressureMpa		material	weight kg
					Interrupted	continuity
YZ35	26#	6.4×3.3	6.9	0.69-4200	0.27	0.20	Aluminium alloy	4.36
	73#	9.6×3.3	12.3	1.23-7400
	82#	12.7×3.3	20	2-12000	0.14	0.10

Figure of product size (line drawing)
