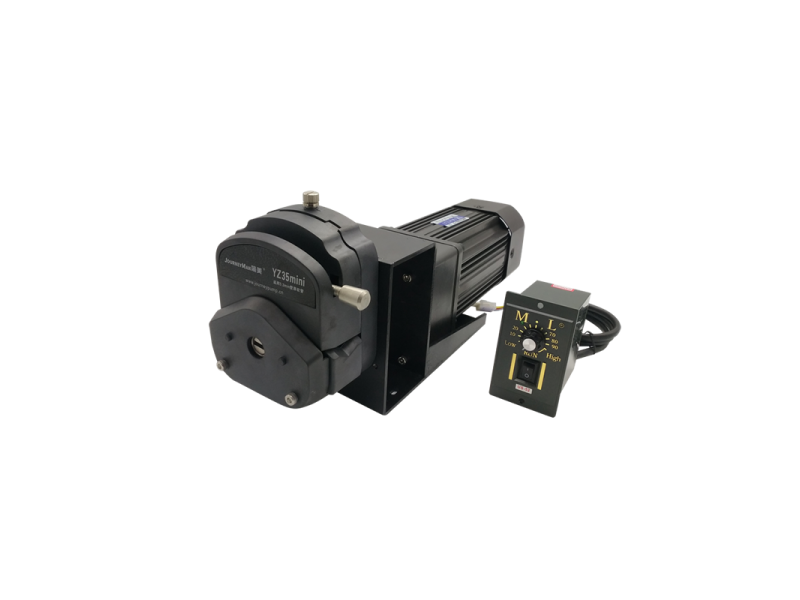

OEM-JT104370
Product model：OEM-JT104370
Reference flow：
brief introduction:
Product model: oem-jt104370
Applicable pump head: yz35mini
Motor type: ac motor
Power supply voltage: 220v/110
Motor phase number: 2
Motor power: 370W
Speed range (RPM): 1-450rpm
Maximum flow: 6375ml/min/ per channel
Working environment temperature: 0-40
Working environment humidity: <80%
Weight: 12kg(excluding pump head)
|
Pump head type |
hose |
internal diameter × wall thickness (mm) |
ml/r |
(speed 0.1-600rpm)
Flow range mL/min
|
hose pressure-bearing Mpa |
material &weightkg |
|
|
Interrupted |
continuity |
PPS |
|||||
|
YZ25plus |
15# |
4.8×2.4 |
1.7 |
0.17-1800 |
0.27 |
0.17 |
1kg
|
|
24# |
6.4×2.4 |
2.9 |
0.29-3500 |
||||
|
35# |
7.9x2.4 |
3.6 |
0.36-5000 |
||||
|
36# |
9.6x2.4 |
5 |
0.5-6000 |
||||
| YZ35mini | 73# | 9.6x3.3 | 5 | 1-6000 | 0.27 | 0.17 |
1kg
|
| 82# | 12.7*3.3 | 14 | 2-8500 | ||||
