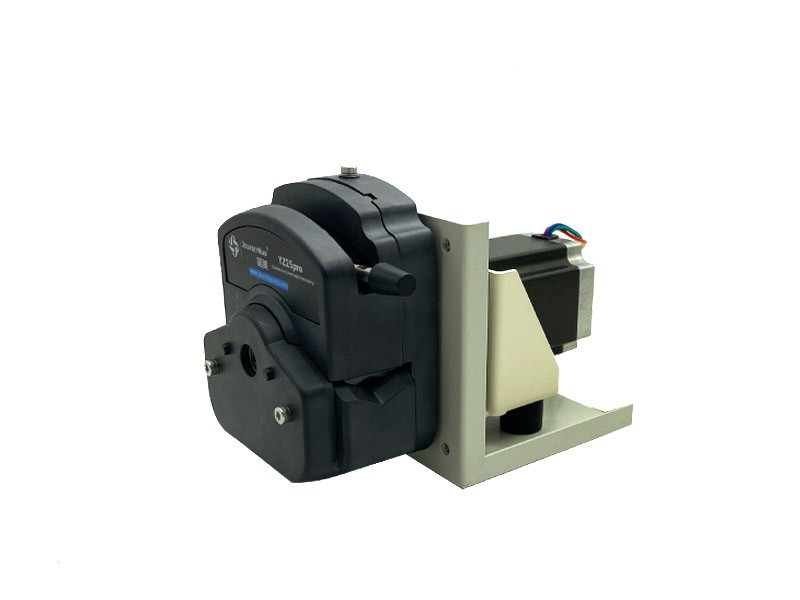

Yz25pro-oem-stepper Motor
Product model：Yz25pro-oem-stepper Motor
Reference flow： 0.17-3100ml/min
Product characteristics
◆36 # peristaltic pump hose with inner diameter of 9.7 mm × wall thickness of 2.4 mm can be installed, and the maximum flow rate reaches an amazing 3 l/min.
◆On the top of the screw, can adjust the pressure of the pipe, enhance the adaptability of the pump head.
◆Under pressure type spring tube clip, enhance the ease of use of the pump head.
◆The runner adopts imported 304 stainless steel.
◆The shell is made of PPS material with good corrosion resistance.
◆Precision molding technology, perfect industrial design, streamline appearance.
◆And YZ series products are all the same size and structure, installation hole compatible.
Applicable Pump Head: YZ25pro
Motor type: stepping motor
Supply voltage: 3.3-5V or, 12V-24V
Motor phase number: 2
Motor step angle: 1.8 degrees
Motor Phase Voltage: 3.75 V
Motor Phase Current: 3.0 A
Motor Power: <60W
Motor Size: 57 step motor
Speed Range (rpm) : 0.1-600 rpm
Operating Temperature: 0-40
Working Environment Humidity: <80%
Full weight: 3kg
Technical parameters
|
Pump head type |
Hose |
Inner diameter × wall thickness (mm) | ML/R |
(speed 0.1-600 rpm) flow rate range mL/min
|
Hose pressure MPA | Material & weight KG | |
|
Discontinuity |
Continuous |
PPS |
|||||
|
YZ25pro |
15# |
4.8×2.4 |
1.7 |
0.17-1020 |
0.27 |
0.17 |
0.55
(three rollers)
0.60
(six rollers)
|
|
24# |
6.4×2.4 |
2.9 |
0.29-1740 |
||||
|
35# |
7.9x2.4 |
3.6 |
0.36-2200 |
||||
|
36# |
9.6x2.4 |
5 |
0.5-3100 | ||||
