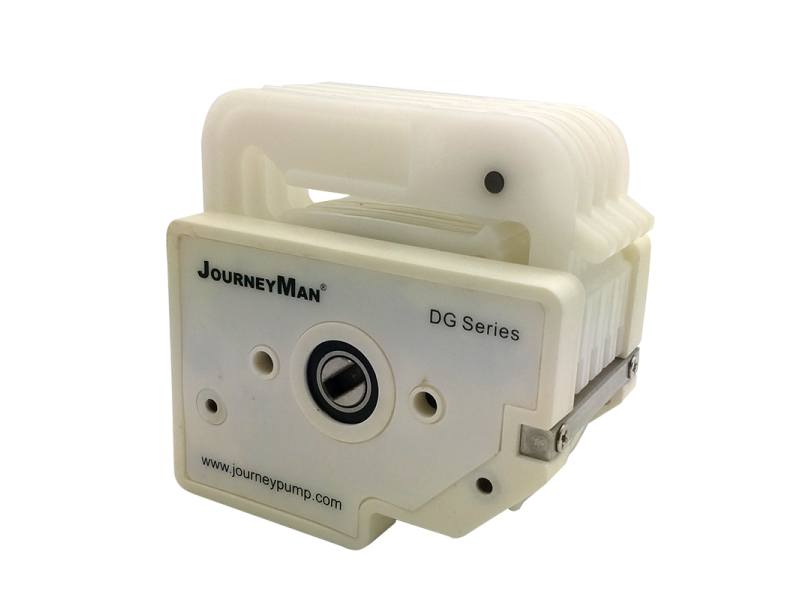

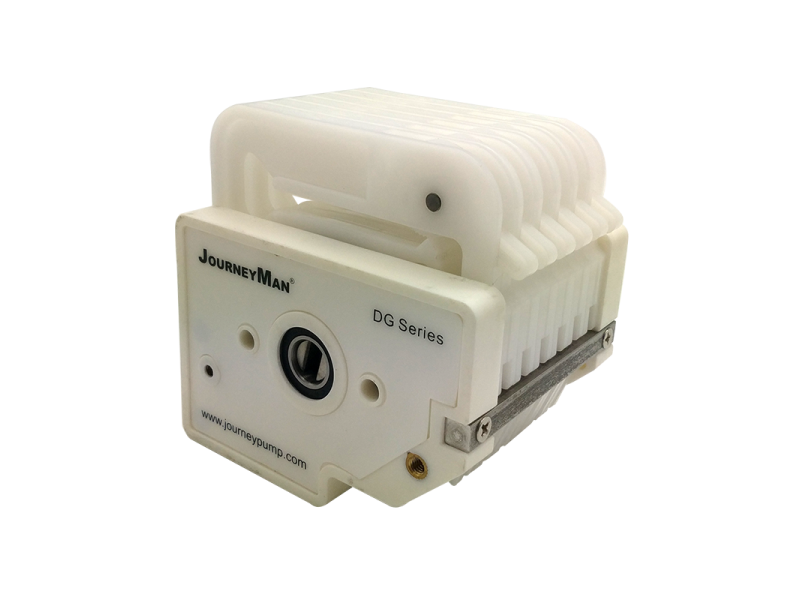

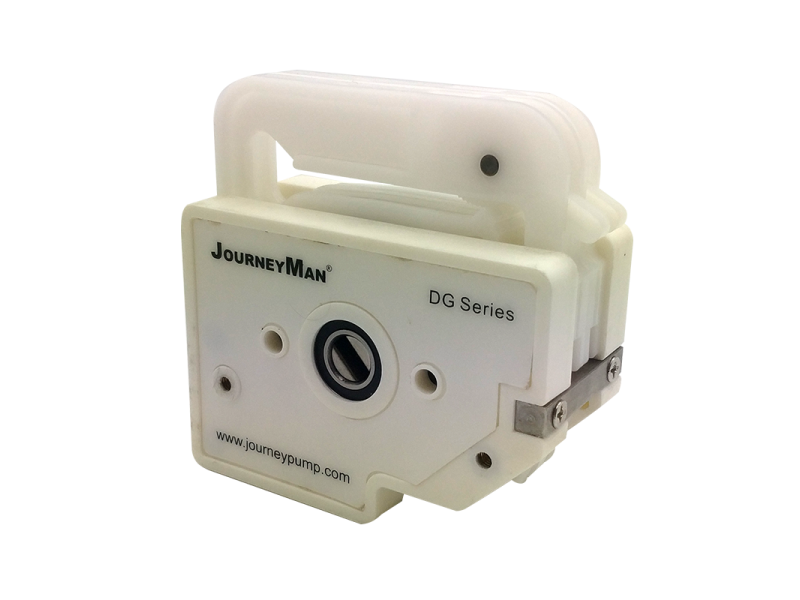

DG

Product model：DG

Reference flow： 0-45mL/min

brief introduction:

Instruction

DG series pump heads are designed for micro flow rates, multi-channel fluids transfer. Easy to change and fix the tubing. Occlusion can be adjusted slightly. The rollers adopt high quality materials. The pump head consists of base, rotor assembly and easily dismounted cartridge

Functions and Features

Multi-channel transfer

Change tubing easily

Fix tubing easily

Occlusion can be adjusted slightly by ratchet wheel to fit different tubing wall thicknesses requirements

6-roller and 10-roller pump heads available

More rollers reduce pulsation and flow rates slightly

Skillful trigger design, convenient to open the cartridges (DG-1, DG-2)

Rollers adopt 304 stainless steel which has chemical resistance to organic solution, acid and alkali

Specifications

Type		DG-1	DG-2	DG-4	DG-6	DG-8	DG-12
channel numbers		1	2	4	6	8	12
Flow parameter (mL /min)	6 rollers	0.002～48（single channel）
	10 rollers	0.0025～32（single channel）
Tubing(mm)		Inner Diameter:0.25～3.17 Wall Thickness: 0.5～1
Speed(rpm)		≤100
Cartridge material		POM
Roller Material		SS
Weight (kg)	6 rollers	0.23	0.3	0.48	0.66	0.83	1.18
	10 rollers	0.23	0.3	0.46	0.63	0.79	1.12

Size

选型指南

型号	流量范围	适用软管	卡管方式	泵壳材料	滚轮材料	滚论数	间隙调整	重量（kg）
DG1	0.0021-21.2ml/min(单管)	11， 21，3*1， 0.5×0.8， 2.4×0.8	自适应	PPS/PVDF	304不锈钢	6/10	固定	0.2
DG2	0.0021-21.2ml/min(单管)	11， 21，3*1， 0.5×0.8， 2.4×0.8	自适应	PPS/PVDF	304不锈钢	6/10	固定	0.3
DG4	0.0021-21.2ml/min(单管)	11， 21，3*1， 0.5×0.8 ，2.4×0.8	自适应	PPS/PVDF	304不锈钢	6/10	固定	0.5

Clicks：977 Entry time：2023-06-25 16:26:07【Return】
