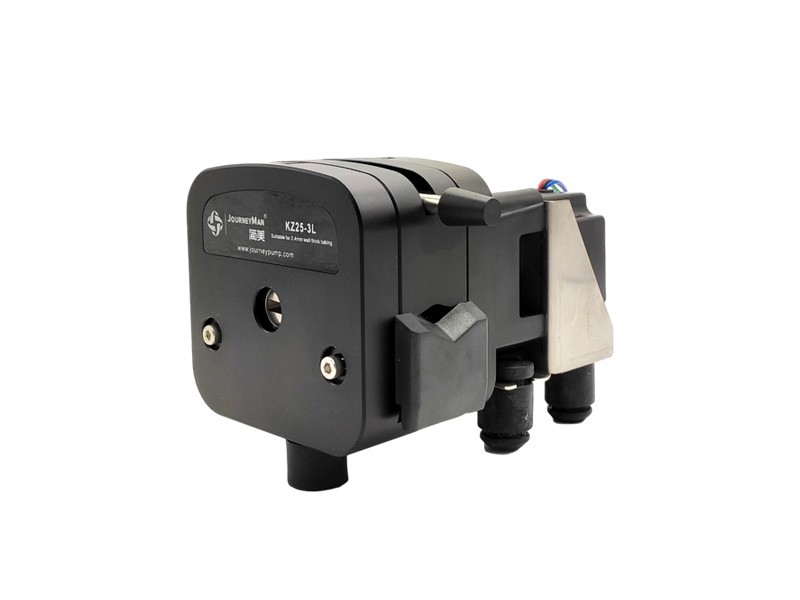

KZ25-3L-OEM
Product model： KZ25-3L-OEM
Reference flow： 0.17-3000ml/min
Product characteristics
◆36 # peristaltic pump hose with inner diameter of 9.7 mm × wall thickness of 2.4 mm can be installed, and the maximum flow rate reaches an amazing 3 l/min
◆The runner adopts imported 304 stainless steel (optional POM)
◆The shell is made of aluminum alloy
Applicable Pump Head: KZ25-3L
Motor type: stepping motor
Supply voltage: 3.3-5V or, 12V-24V
Motor phase number: 2
Motor step angle: 1.8 degrees
Motor Phase Voltage: 3.75 V
Motor Phase Current: 3.0 A
Motor Power: <60W
Motor Size: 57 step motor
Speed Range (rpm) : 0.1-600 rpm
Operating Temperature: 0-40
Working Environment Humidity: < 80%
Full weight: 3kg
Technical parameters
| Pump head type | Hose |
Inner diameter × wall thickness (mm) |
ML/R |
(speed 0.1-600 rpm) flow rate range mL/min
|
Hose pressure MPA |
Material & weight KG | ||
|
Discontinuity |
Continuous |
AL |
|
|||||
|
KZ25-3L |
15# |
4.8×2.4 |
1.7 |
0.17-1020 |
0.27 |
0.17 |
1.0(three rollers)
|
|
|
24# |
6.4×2.4 |
2.9 |
0.29-1740 |
|||||
|
35# |
7.9x2.4 |
3.6 |
0.36-2200 |
|||||
|
36# |
9.6x2.4 |
5 |
0.5-3000 |
|||||
External dimensions
