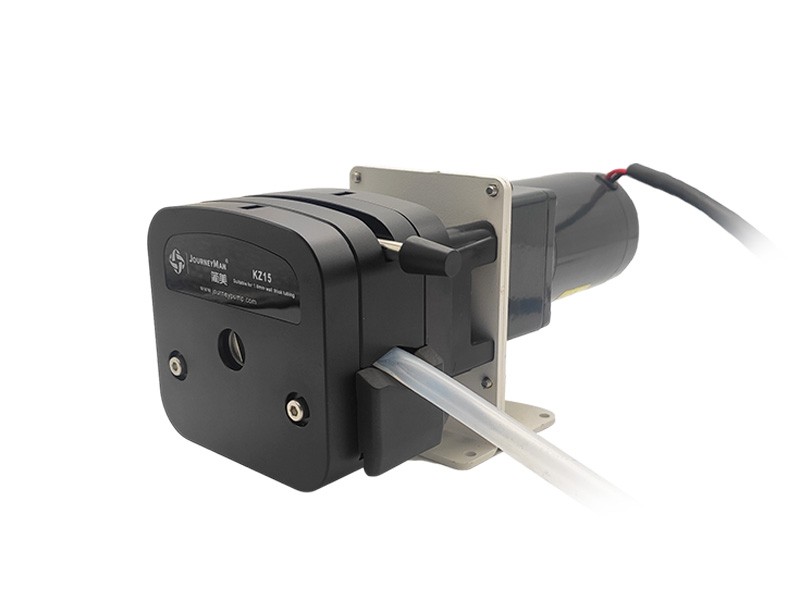

KZ15-OEM-ZL8060
Product model： KZ15-OEM-ZL8060
Reference flow： 0.38-2280
Product characteristics
◆36 # peristaltic pump hose with inner diameter of 9.7 mm × wall thickness of 2.4 mm can be installed, and the maximum flow rate reaches an amazing 3 l/min
◆The runner adopts imported 304 stainless steel (optional POM)
◆The shell is made of aluminum alloy
Product model: KZ15-OEM-ZL8060
Applicable Pump Head: KZ15
Maximum Flow: 6000 ml/min
Motor type: DC Motor
Supply voltage: 12V or 24V
Motor phase number: 2
Motor Size: 80 DC motor
Speed Range (rpm) : 1-600 rpm
Operating Temperature: 0-40
Working Environment Humidity: <80%
Full weight: 4 kg
Industry applications
Industrial transmission, filling
Environmental protection equipment COD supporting
Function and characteristics
1. Pump head shell material aluminum alloy (AL) material pump head, beautiful appearance, high temperature resistance, can be used between -100 ° C to 150 ° C for a long time, and at high temperature aging performance is excellent. Can withstand most of the inorganic acid and alkali salt corrosion, resistance to the corrosion of organic solvents.
2.Pump head roller material-304 stainless steel corrosion resistance, not easy to rust, high health grade, low repair rate, for you to save maintenance costs.
3. Seven different sizes of hoses can be used to ensure the same transmission accuracy of 5‰ ~ 1% in different flow ranges.
Technical parameters
|
Pump head type |
Hose |
Inner diameter × wall thickness (mm) |
(speed 0.1-600 rpm) flow rate range mL/min
|
Tube pressure MPA |
Material & weight KG |
||
| Discontinuity |
Continuous |
AL |
|
||||
|
KZ15 |
13# |
0.8×1.6 |
0.007-42 |
0.27 |
0.17 |
1.0
(three rollers) |
|
|
14# |
1.6×1.6 |
0.027-162 |
|||||
|
19# |
2.4×1.6 |
0.055-330 |
|||||
|
16# |
3.1×1.6 |
0.082-492 |
|||||
|
25# |
4.8×1.6 |
0.17-1020 |
0.24 |
0.14 |
|||
|
17# |
6.4×1.6 |
0.29-1740 |
0.14 |
0.10 |
|||
|
18# |
7.9×1.6 |
0.38-2280 |
0.10 |
0.07 |
|||
Product appearance size diagram (line diagram)
