Product Brief

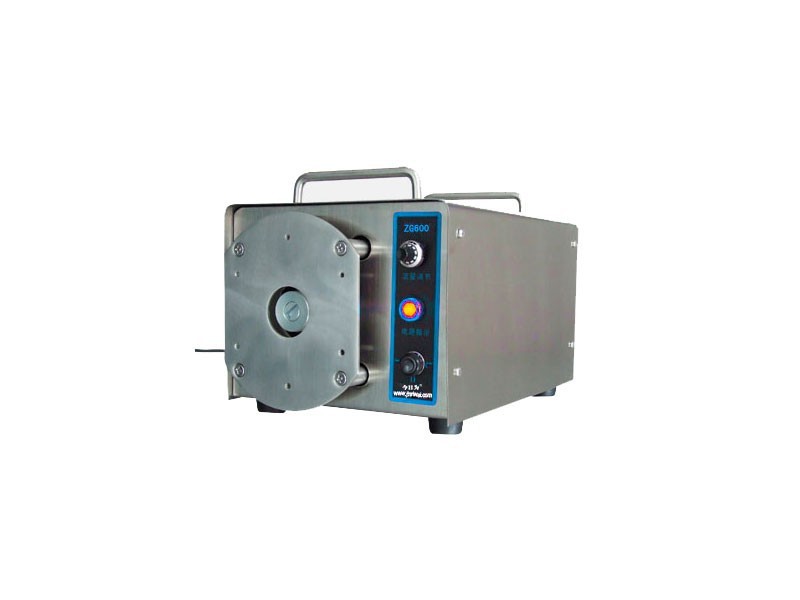

一 Peristaltic pumps ZG600 product description

ZG600 type peristaltic pump can be installed 2 pump head: YZ35 plastic pump, YZ35 aluminum pump head, can provide the 740-12000ml/min (single) flow range; speed manual adjustment, or by the external control interface control; using high-power DC motor drive, strong power, large torque, high level of protection for environment, transport bad industrial occasions large pressure and flow.

二 Peristaltic pump ZG600 technical indicators

Speed range: 60~600rpm positive and reverse reversible

Adjustment mode: multi circle potentiometer to adjust speed

External control function: switch quantity control, internal and external control transformation, external control start and stop; 0-10V, 4-20mA and 0-10KHz speed control input

Applicable power supply：AC 220V±15% 50Hz/60Hz

Power consumption：＜400W

Outline size(Length * width * height)：325×236×193(mm)

Drive weight：17Kg

IP level: IP31

三Peristaltic pump ZG600 features

Can install a variety of pump head：YZ35(aluminum)YZ35(Plastic)

The speed can be adjusted manually, or it can be controlled by an external control interface

IP grade: IP31, stable and reliable performance, suitable for industrial production in harsh environment

Single channel flow of 12L/min, suitable for medium and large flow transportation

Peristaltic pump ZG600 other parameters
