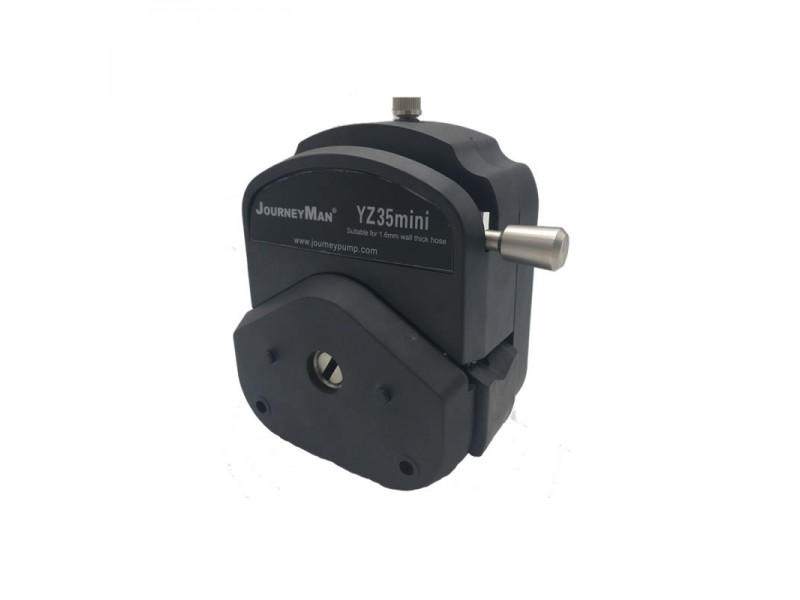

YZ35mini_Journeyman Peristaltic Pump

YZ35mini

Product model：YZ35mini

Reference flow： 0.007-8500mL/min

brief introduction:

Product features

◆YZ25plus,Flexible 2.4mm hose with 36# inner diameter 9.7mm * wall thickness, and maximum flow of 6L/min

◆YZ35mini,Flexible 3.3mm hose with 82# inner diameter 12.7mm * wall thickness, and maximum flow of 8.5L/min

◆The runner adopts imported 304 stainless steel

◆The shell adopts PPS

◆Precision mold forming technology, perfect industrial design, streamlined appearance

◆Unique rear dustproof rear cover design, more hygienic, clean, easy to clean

technical parameter

Pump head type	hose	internal diameter × wall thickness (mm)	ml/r	(speed 0.1-600rpm) Flow range mL/min	hose pressure-bearing Mpa		material &weightkg
					Interrupted	continuity	PPS
YZ25plus	15#	4.8×2.4	1.7	0.17-1800	0.27	0.17	1kg
	24#	6.4×2.4	2.9	0.29-3500
	35#	7.9x2.4	3.6	0.36-5000
	36#	9.6x2.4	5	0.5-6000
YZ35mini	73#	9.6x3.3	5	1-6000	0.27	0.17	1kg
	82#	12.7*3.3	14	2-8500
