Product features

Quick change hose with adaptive clamping device.

Apply 9 different sizes of hose to meet different flow requirements.

Pump head shell is PSF polysulfone material, good rigidity and high accuracy.

Pump head roller assembly adopts 304 stainless steel material, long life, corrosion resistance.

Industry application

Industrial transmission, filling

COD matching of environmental protection instruments

Function and characteristics

1. Pump head shell material - PSF or PSU polysulfone (white) PSF material pump head, white, exquisite appearance, high temperature resistance, can be used between -100 and 150 degrees Celsius for a long time, and in high temperature, excellent aging resistance. In corrosion resistance, it can withstand most of the inorganic acid base salt corrosion, but it can not withstand the corrosion of solvent. If you want to transport organic solvents, select the PPS polyphenylene sulfide pump head.

2. Pump head roller material - 304 stainless steel corrosion resistance, not easy to rust, sanitary level is high, repair rate is low, for you to save maintenance costs.

3.  You can use 9 different sizes of the hose, to ensure the realization of the same precision transmission in different flow range is 5‰－1﹪.

technical parameter

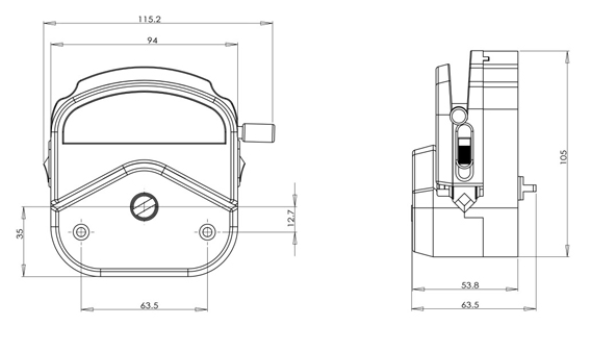

Figure of product size (line drawing)
