BT100M
Product model：BT100M
Reference flow： 0.002-380ml/min
1Peristaltic pump BT100M Technical index：
|
Speed range |
0.1～100 rpm |
Speed resolution |
0.1 rpm |
|
Display mode |
3 bit LED digital tube shows the current speed |
Adjustment mode |
Film buttons adjust speed, direction, start / stop, full speed |
|
External control function |
Input TTL (+5VDC) level input to control the start and stop, the direction of the internal input optocoupler isolation; 0-5V, 0-10V, 4-20mA, 0-10KHz signal to control the speed of; * use external control must purchase the external control module or connection mode and consulting company. |
Communication function |
RS485 communication function, RS485 communication module connected with the pump and the RS232 transfer module of the host computer, the company can provide RS485 module |
|
Applicable power supply |
220VAC±10﹪ 50HZ/60HZ
|
Power consumption |
≤30w |
|
work environment |
ambient temperature 0～40℃、relative humidity＜80% |
Overall size (long×width×high) |
191mm×105mm×138mm |
|
Drive weight |
3.9kg（No pump head） |
IP class |
IP31 |
2 Peristaltic pump BT100m main features
▲Stepper motor subdivision drive, high precision, smooth operation.
▲Stainless steel shell, black film button, green digital display, unique, and widely used.
▲3 bit LED digital display of the current speed, simple and intuitive, clear at a glance.
▲The film button controls the speed, direction, start and stop. It is simple and convenient to operate. It also has a full speed key, which can be quickly filled or emptied.
▲With power down memory function, power is switched on after power loss, and work according to the state before power loss.
▲Through RS-485 and PC communication, the company can provide free testing software and communication protocols.
▲Can be used in conjunction with the selection of accessories to achieve small batch filling, distribution;
Accessories are time distributor, foot switch, contact control module and so on. Special requirements can be referred to our company.
3 Peristaltic pump BT100-01 can be fitted with pump head

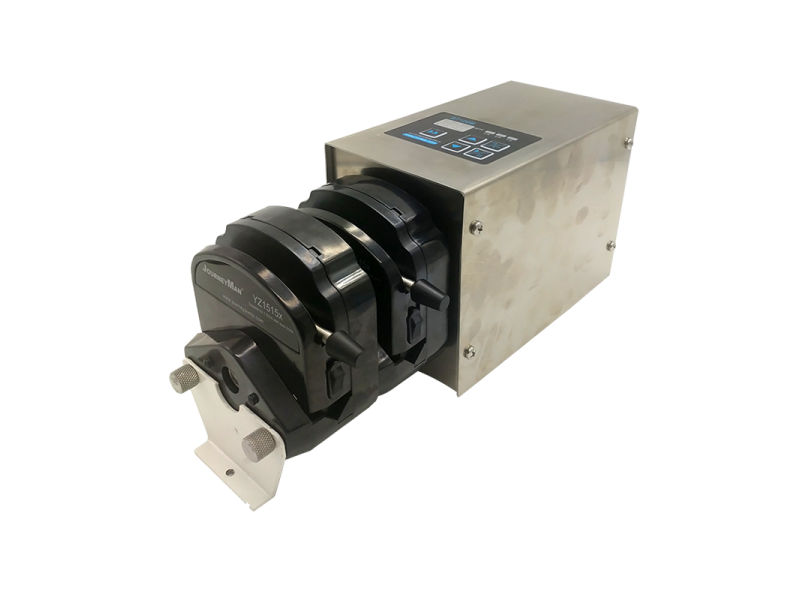

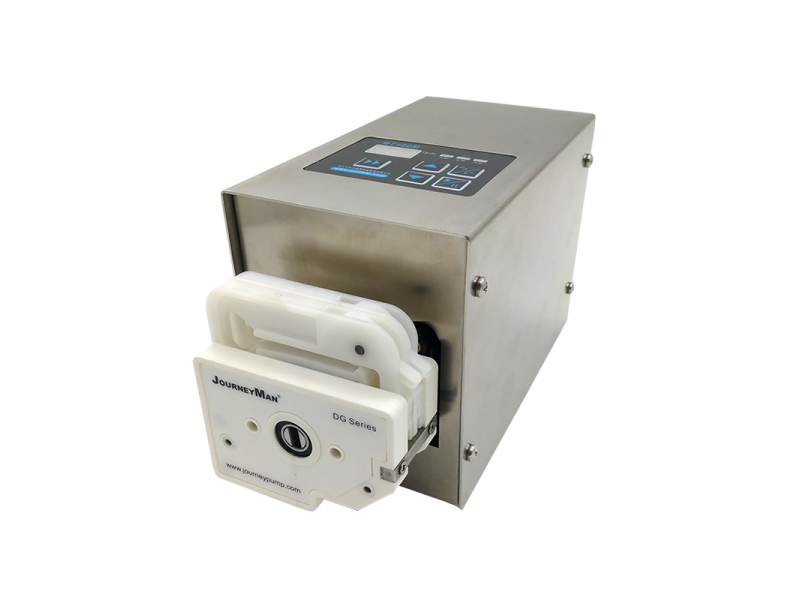

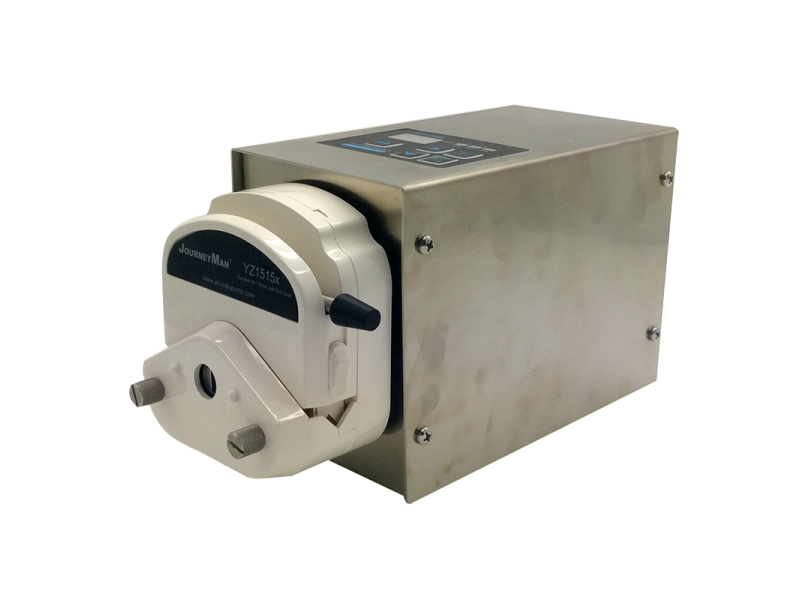

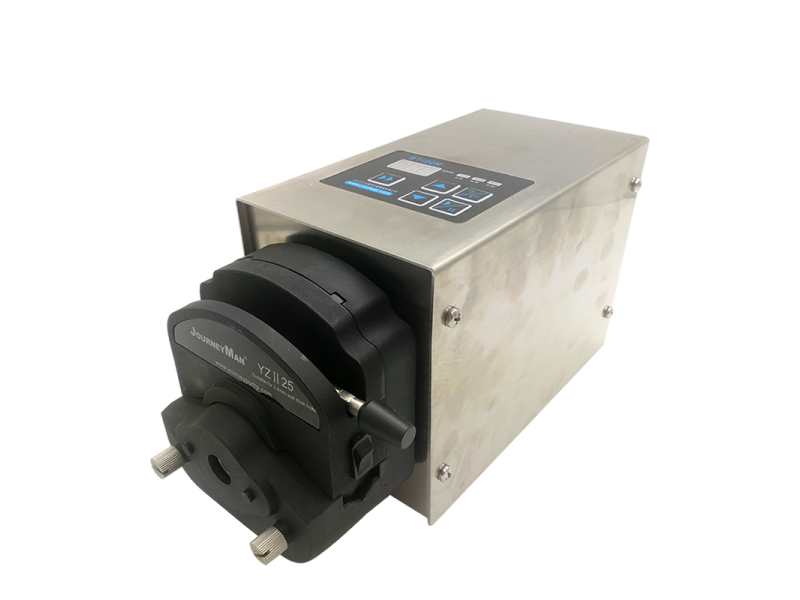

▲Pump head can be installed: YZ1515, YZ2515, DG series
4 Peristaltic pump; BT100m parameter; flow rate
|
Drive type |
Applicable pump head |
Applicable hose |
Flow range |
Channel number |
|
（ml/min） |
||||
|
BT100M |
YZ1515x |
13# 14# 16# 19# 17# 18# 25# |
0.07 - 380 |
1 |
|
YZ2515x |
15# 24# |
0.17 - 270 |
1 |
|
|
DG - 1(6 rollers) |
wall thickness 0.8 - 1 mm
internal diameter ≤3.17 mm
|
0.0025 - 48 |
1 |
|
|
DG - 1(10 rollers) |
wall thickness 0.8 - 1 mm
internal diameter ≤3.17 mm
|
0.002 - 32 |
1 |
|
|
DG - 2(6 rollers) |
wall thickness 0.8 - 1 mm
internal diameter ≤3.17 mm
|
single channel 0.0025 - 48 |
2 |
|
|
DG - 2(10 rollers) |
wall thickness 0.8 - 1 mm
internal diameter ≤3.17 mm
|
Single tube 0.002 - 32 |
2 |
五 Peristaltic pumps BT100m typical applications
※Conventional fluid delivery ※Dosage supplement for food and beverage production ※Supplementing acid, supplementing alkali and defoaming in process fermentation system ※Laboratory
